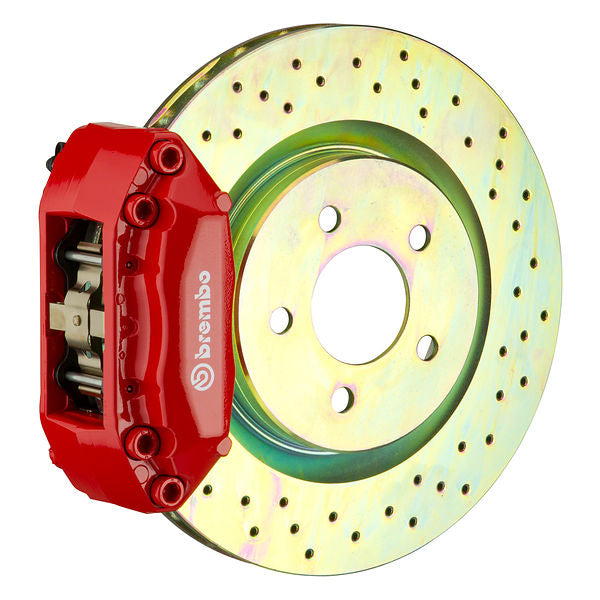

Brembo GT|A Front Brake System | 4 Piston Caliper, 1-Piece Disc, 330mm Diameter
CALIPER COLOR: Red
DISC DIAMETER: 330mm
DISC TYPE: Drilled
BRAKE PADS:BREMBO FM1000
- Ready-to-bolt-on brake system for one axle, including:
- Brembo High Performance Brake Calipers
- Brembo High Performance Brake Discs
- Application-Specific Brembo Engineered Caliper Adapters
- Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
- Brake Pads
- All Required Mounting Hardware
- Detailed Installation Instructions
BRAKE CALIPER
| Piston Count | 4 Piston |
|---|---|
| Caliper Finish | Painted |
| Caliper Material | Cast Aluminum |
| Caliper Construction | 2-Piece |
| Mount Type | Radial |
| Quick Release Pad Retainer | Yes |
| Disc Construction | 1-Piece |
| Piston Type | P-Monobloc |
| Piston Material | Aluminum |
| Piston Insert Material | None |
| Dust Seal | Bellows |
| Bleed Screw | Single Concealed |
BRAKE DISC
| Disc Construction | 1-Piece |
|---|---|
| Disc Material | Advanced High Carbon Alloy |
| Disc Finish | Corrosion Resistant Plating |
| Disc Vane Design | Pillar Vane |
| Disc Diameter | 330 |
| Disc Thickness | 28 |
| Disc Air Gap | 13 |
| Disc Annulus | 56 |
| Disc Mounting System | N/A |
Disc LH
XP01495
Disc RH
XP01495
Bracket
XP01482
Brake Line
903610
Before you purchase a Brembo Performance or Racing Brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.
Look up your vehicle application and Y|M|M

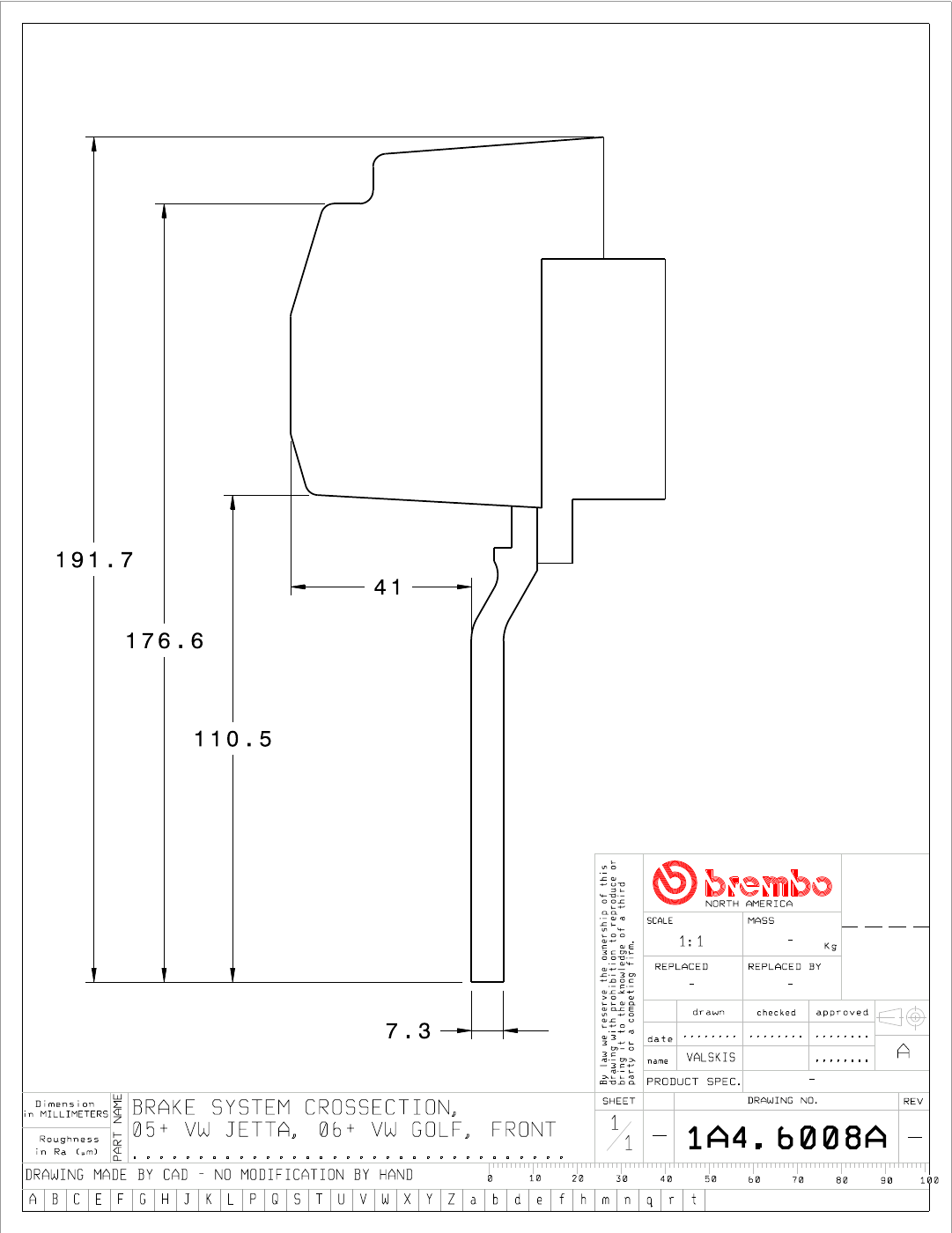

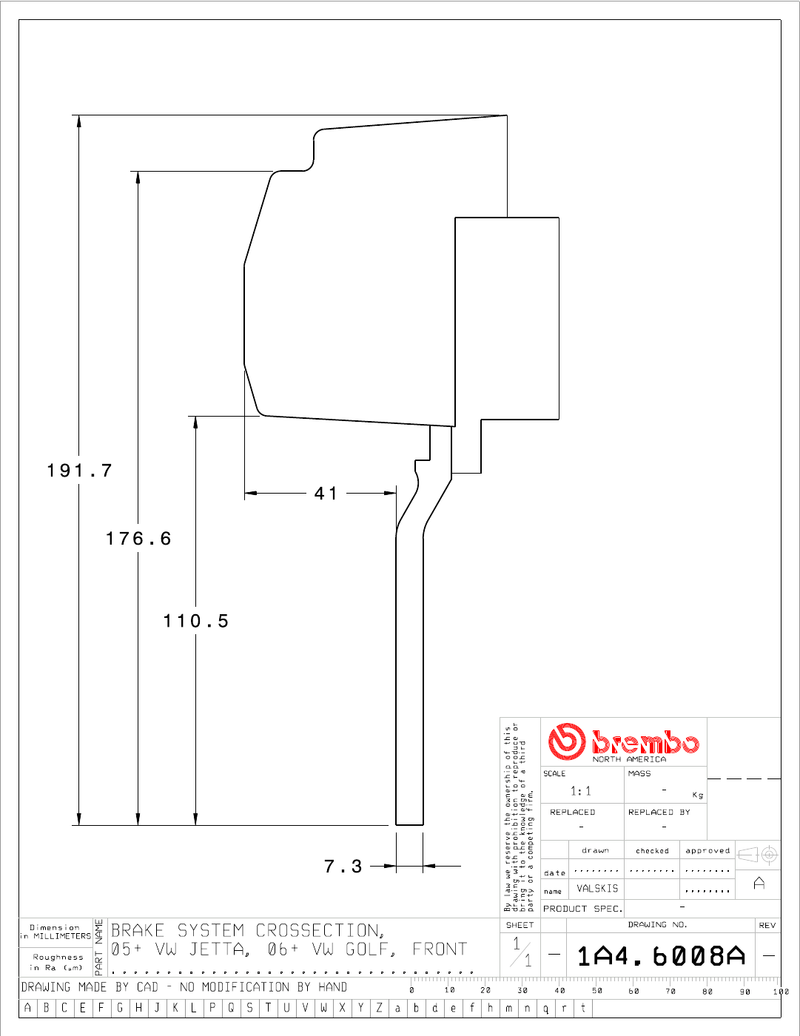

Print out Brake Profile Cross Section PDF
Cut out profile, measure with your wheel
Read Our Full Fitment Guide for more info:
Loading vehicle compatibility…
