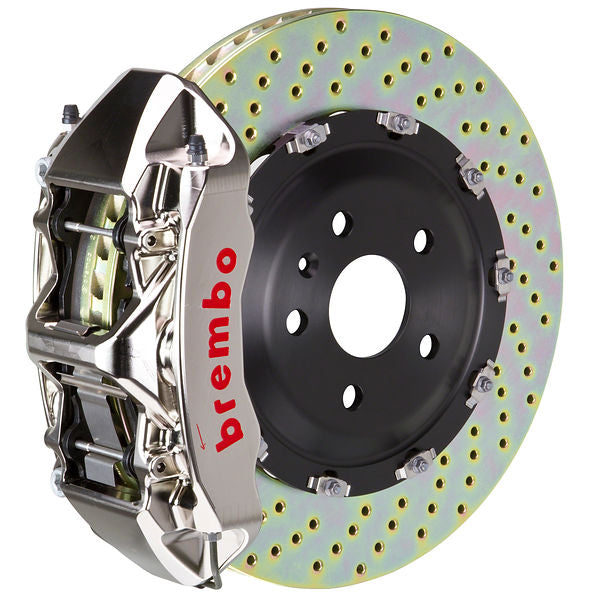

Brembo GT|R Front Brake System | 6 Piston Caliper, Nickel Plated | 2-Piece Disc, 380mm Diameter
CALIPER COLOR: Nickel Plated
DISC DIAMETER: 380mm
DISC TYPE: Drilled
BRAKE PADS:BREMBO FM1000
- Ready-to-bolt-on brake system for one axle, including:
- Brembo High Performance Brake Calipers
- Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
- Application-Specific Brembo Engineered Caliper Adapters
- Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
- Brake Pads
- All Required Mounting Hardware
- Detailed Installation Instructions
BRAKE CALIPER
| Piston Count | 6 Piston |
|---|---|
| Caliper Finish | Nickel Plated |
| Caliper Material | Billet Aluminum |
| Caliper Construction | Monobloc |
| Mount Type | Radial |
| Quick Release Pad Retainer | Yes |
| Disc Construction | 2-Piece |
| Piston Type | With Insert |
| Piston Material | Aluminum |
| Piston Insert Material | PI-Stainless Steel |
| Dust Seal | Recessed Wiper |
| Bleed Screw | Dual |
BRAKE DISC
| Disc Construction | 2-Piece |
|---|---|
| Disc Material | Advanced High Carbon Alloy |
| Disc Finish | Corrosion Resistant Plating |
| Disc Vane Design | Curved Vane |
| Disc Diameter | 380 |
| Disc Thickness | 34 |
| Disc Air Gap | 14 |
| Disc Annulus | 61.5 |
| Disc Mounting System | Floating H-Bobbin with Anti-Rattle Spring |
Disc LH
906536
Disc RH
906537
Hardware Kit
915506
Bracket
902B66
Brake Line
903831
Disc Bell
901B66
Before you purchase a Brembo Performance or Racing Brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.
Look up your vehicle application and Y|M|M
Print out Brake Profile Cross Section PDF
Cut out profile, measure with your wheel
Read Our Full Fitment Guide for more info:
