Brembo PISTA Front Brake System | 4 Piston XB105 Caliper, Clear Hard Anodized | 2-Piece Disc, 355mm Diameter

(F) 4-Piston Billet Calipers | 355x35x53a (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
$7,495.00
SKU: 3K3.8044AK

CALIPER COLOR: Clear Hard Anodized

DISC DIAMETER: 355mm

DISC TYPE: TY3

  • Ready-to-bolt-on brake system for one axle, including:
  • Brembo High Performance Brake Calipers
  • Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
  • Application-Specific Brembo Engineered Caliper Adapters
  • Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
  • Brake Pads
  • All Required Mounting Hardware
  • Detailed Installation Instructions

BRAKE CALIPER

Piston Count4 Piston
Caliper FinishHard Anodized
Caliper MaterialBillet Aluminum
Caliper Construction2-Piece
Mount TypeRadial
Disc Construction2-Piece

BRAKE DISC

Disc Construction2-Piece
Disc MaterialAdvanced High Carbon Alloy
Disc FinishUnplated
Disc Vane DesignCurved 48 Vane
Disc Diameter355
Disc Thickness35
Disc Air Gap17
Disc Annulus53
Disc Mounting SystemFloating D-Bobbin with Anti-Rattle Spring

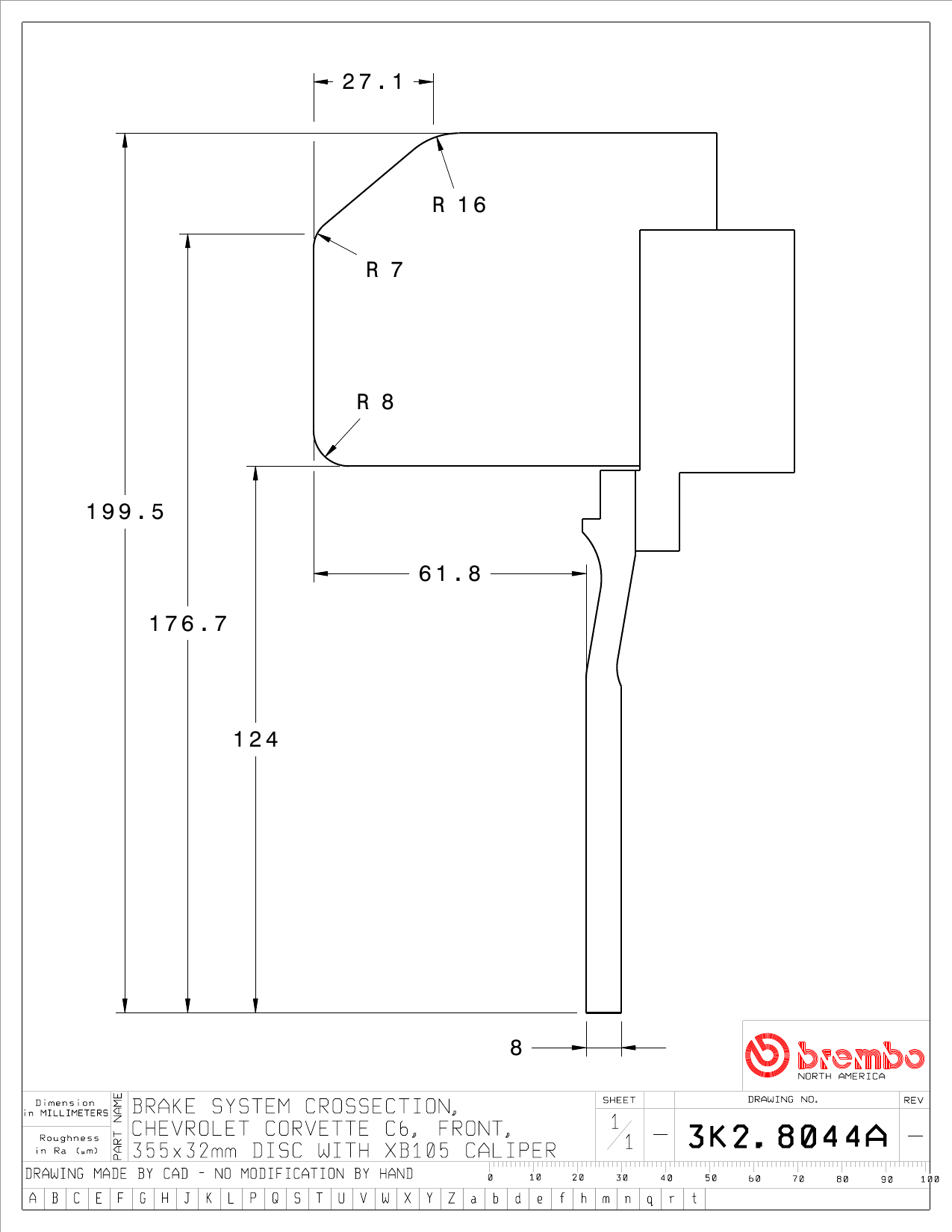

Disc drawing
Discs

Disc LH
09930614

Disc RH
09930624

Brake Pads

Default Pad Set
P4007.25

SHOP ALL
BRAKE PADS
Accessories

Hardware Kit
915503

Bracket
20B77108

Brake Line
903595

Disc Bell
16B77009

IMPORTANT!

Before you purchase a Brembo Performance or Racing Brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.

1.

Look up your vehicle application and Y|M|M

2.

Print out Brake Profile Cross Section PDF

3.

Cut out profile, measure with your wheel

Read Our Full Fitment Guide for more info:

How To Measure Your Wheels For Fitment Download Wheel Fitment Template
Wheel fitment diagram
