Brembo PISTA Front Brake System | 4 Piston XB105 Caliper, Clear Hard Anodized | 2-Piece Disc, 380mm Diameter
CALIPER COLOR: Clear Hard Anodized
DISC TYPE: TY5
- Ready-to-bolt-on brake system for one axle, including:
- Brembo High Performance Brake Calipers
- Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
- Application-Specific Brembo Engineered Caliper Adapters
- Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
- Brake Pads
- All Required Mounting Hardware
- Detailed Installation Instructions
BRAKE CALIPER
| Piston Count | 4 Piston |
|---|---|
| Caliper Finish | Hard Anodized |
| Caliper Material | Billet Aluminum |
| Caliper Construction | 2-Piece |
| Mount Type | Radial |
| Disc Construction | 2-Piece |
BRAKE DISC
| Disc Construction | 2-Piece |
|---|---|
| Disc Material | Advanced High Carbon Alloy |
| Disc Finish | Unplated |
| Disc Vane Design | Curved 72 Vane |
| Disc Diameter | 380 |
| Disc Thickness | 34 |
| Disc Air Gap | 17 |
| Disc Annulus | 65 |
| Disc Mounting System | Floating D-Bobbin with Anti-Rattle Spring |
Disc LH
09852831
Disc RH
09852841
Default Pad Set
P4008.25
BRAKE PADS
Hardware Kit
915503
Bracket
902423L/R
Brake Line
903718
Disc Bell
901347
Before you purchase a Brembo Performance or Racing Brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.
Look up your vehicle application and Y|M|M

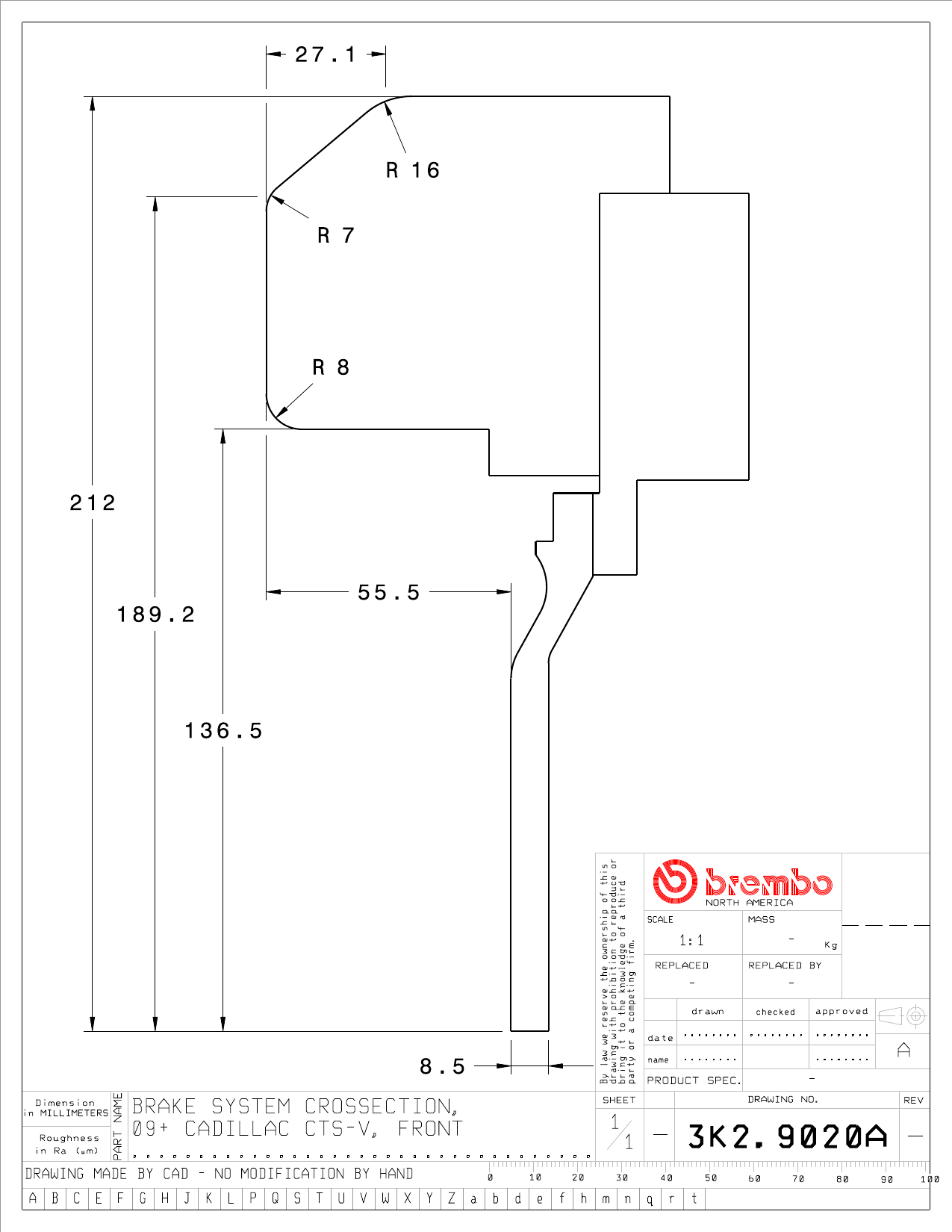

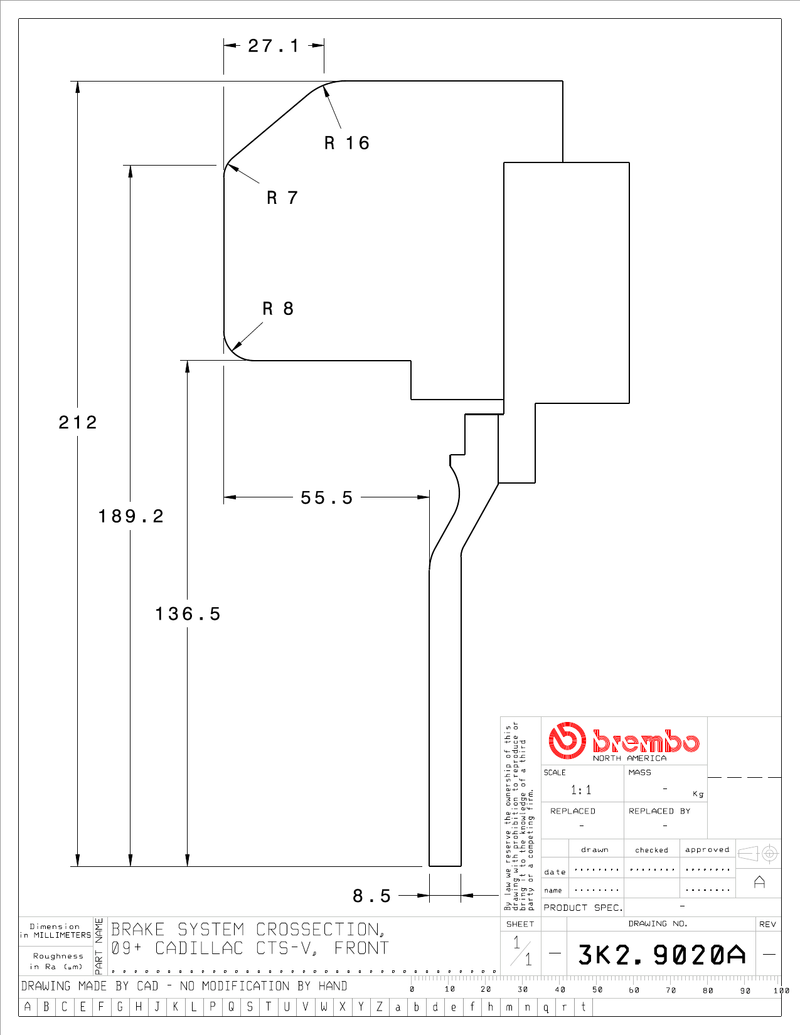

Print out Brake Profile Cross Section PDF
Cut out profile, measure with your wheel
Read Our Full Fitment Guide for more info:
