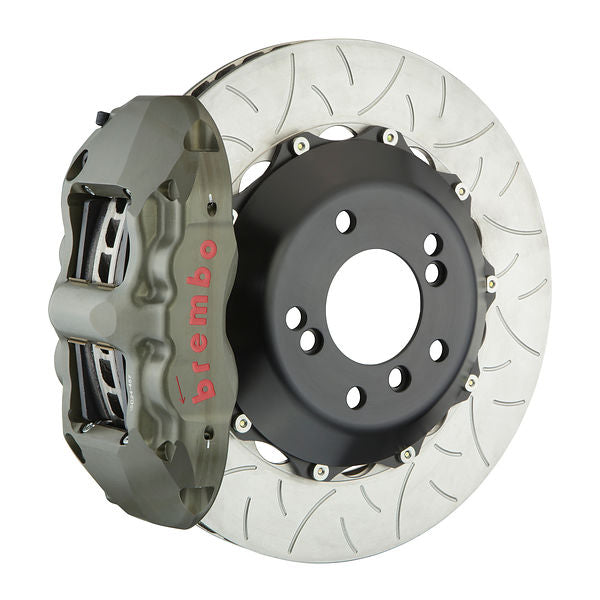

Brembo PISTA Rear Brake System | 4 Piston XA5T0 Caliper, Clear Hard Anodized | 2-Piece Disc, 332mm Diameter
CALIPER COLOR: Clear Hard Anodized
DISC TYPE: TY3
- Ready-to-bolt-on brake system for one axle, including:
- Brembo High Performance Brake Calipers
- Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
- Application-Specific Brembo Engineered Caliper Adapters
- Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
- Brake Pads
- All Required Mounting Hardware
- Detailed Installation Instructions
BRAKE CALIPER
| Piston Count | 4 Piston |
|---|---|
| Caliper Finish | Hard Anodized |
| Caliper Material | Forged Aluminum |
| Caliper Construction | Monobloc |
| Mount Type | Radial |
| Disc Construction | 2-Piece |
BRAKE DISC
| Disc Construction | 2-Piece |
|---|---|
| Disc Material | Advanced High Carbon Alloy |
| Disc Finish | Unplated |
| Disc Diameter | 332 |
| Disc Thickness | 32 |
| Disc Air Gap | 16.5 |
| Disc Annulus | 53 |
| Disc Mounting System | Floating D-Bobbin with Anti-Rattle Spring |
Disc LH
09866670
Disc RH
09866680
Default Pad Set
P4007.17
BRAKE PADS
Hardware Kit
915503
Bracket
902X53
Brake Line
903773
Disc Bell
901343
Before you purchase a Brembo Performance or Racing Brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.
Look up your vehicle application and Y|M|M

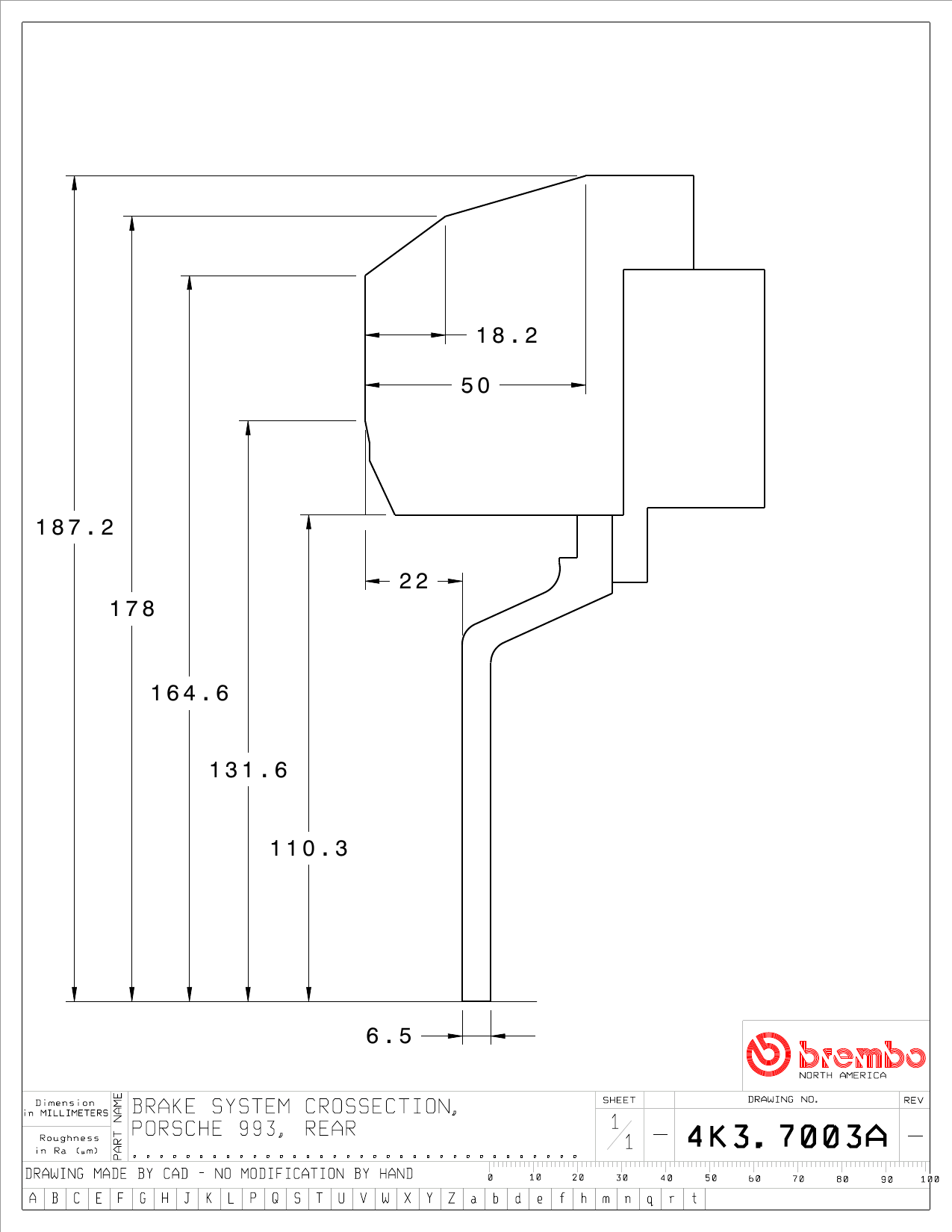

Print out Brake Profile Cross Section PDF
Cut out profile, measure with your wheel
Read Our Full Fitment Guide for more info:
