Brembo PISTA Rear Brake System | 4 Piston XA830 Caliper, Clear Hard Anodized | 2-Piece Disc, 355mm Diameter

(R) 4-Piston Forged Monobloc Calipers | 355x32x53a (14") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included
$7,495.00
SKU: 4KC.8020AK

CALIPER COLOR: Clear Hard Anodized

DISC TYPE: TY5

  • Ready-to-bolt-on brake system for one axle, including:
  • Brembo High Performance Brake Calipers
  • Brembo High Performance Brake Discs, Pre-Assembled and Ready to Install
  • Proprietary, Brembo Stainless Steel Brake Lines by Goodridge
  • Brake Pads
  • All Required Mounting Hardware
  • Detailed Installation Instructions

BRAKE CALIPER

Piston Count4 Piston
Caliper FinishHard Anodized
Caliper MaterialForged Aluminum
Caliper ConstructionMonobloc
Mount TypeRadial
Disc Construction2-Piece

BRAKE DISC

Disc Construction2-Piece
Disc MaterialAdvanced High Carbon Alloy
Disc FinishUnplated
Disc Vane DesignCurved 48 Vane
Disc Diameter355
Disc Thickness32
Disc Air Gap15.7
Disc Annulus52.2
Disc Mounting SystemFloating D-Bobbin with Anti-Rattle Spring

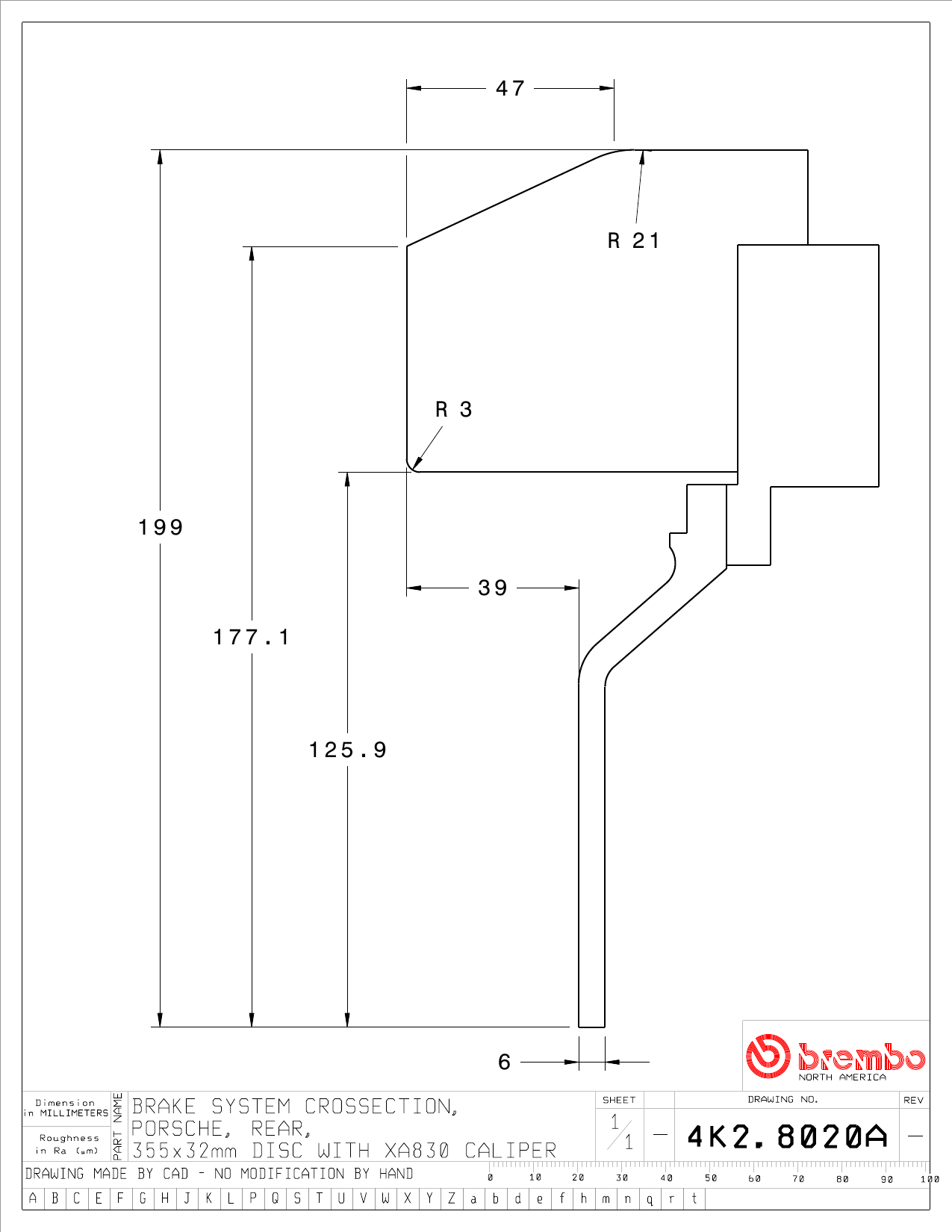

Disc drawing
Discs

Disc LH
59E97540

Disc RH
59E97541

Brake Pads

Default Pad Set
P4013.25

SHOP ALL
BRAKE PADS
Accessories

Hardware Kit
915503

Brake Line
903558

Disc Bell
901431

IMPORTANT!

Before you purchase a Brembo Performance or Racing Brake system you should always confirm that the vehicle's wheels have adequate clearance, regardless of wheel size.

1.

Look up your vehicle application and Y|M|M

2.

Print out Brake Profile Cross Section PDF

3.

Cut out profile, measure with your wheel

Read Our Full Fitment Guide for more info:

How To Measure Your Wheels For Fitment Download Wheel Fitment Template
Wheel fitment diagram
